Meibomian Gland Camera

Our Price:  £950.00(£791.67 Exc. VAT)

Availability:



+

Model:  OC-3

  • FREE UK Delivery on ALL orders

  • 14 Day return on all products

Ocu Cam


Meibomian gland camera, Digital slit lamp camera and Tear film analyser

The OICO Ocu-Cam Ultra HD is the worlds FIRST ocular imaging system with Infra red illumination for Meibomian Gland Dysfunction (MGD) diagnosis and imaging, white light for colour external photography and additional 470nm Blue light for corneal imaging.

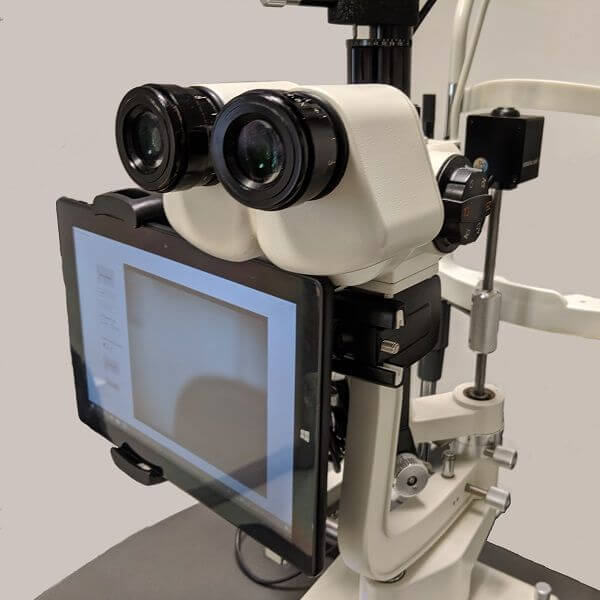

The Ocu-Cam upgrades any traditional slit lamp into a modern digital imaging system with Ultra High Definition imaging and video for a low price.

Simple, user friendly operating interface designed for fast and easy image and video capture by a single operator with very limited training. The universal slit lamp mount ensures zero disruption to practice workflow with simple integration into any slit lamp.




Diagnostic Features

Meibomian gland imaging (Meibography)
Blapharitis Imaging
Demodex Imaging
Blue light corneal imaging
Non-Invasive Tear Film Break up Time (N.I.B.U.T)
Bulbar Redness classification



Measurement functions

White to White measurement. (Limbus to Limbus)
Tear Meniscus height
Pupillometry (Mesopic, Scotopic & Photopic)



Illumination System

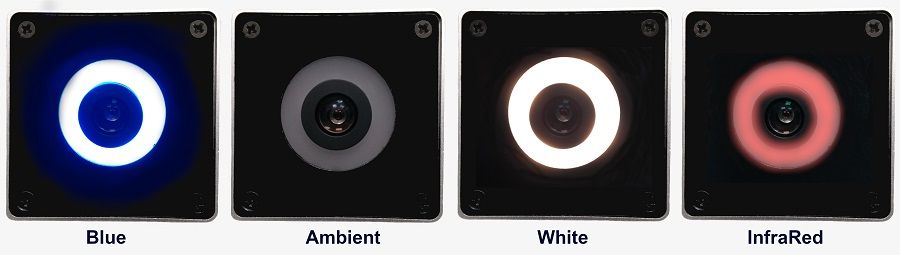

Unique ring arrangement with multi wavelength LEDs giving exceptional bright homogeneous light.

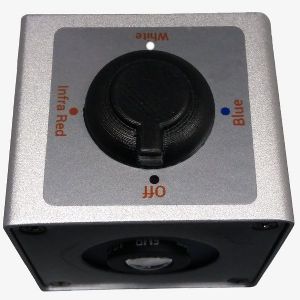

Ocu-Cam illumination selector
Simple selector switch for changing illumination colour


Eyesafe Infrared for Meibomian gland imaging
470nm Blue for corneal staining imaging
White for external ocular imaging

Colour selection



Optical System

High quality AR coated aspheric lenses for highest clarity images

Multi-wavelength optical system for continuously clear focused imaging when changing wavelength

Unique Multi wavelength pass filter providing true colour accuracy and representation.

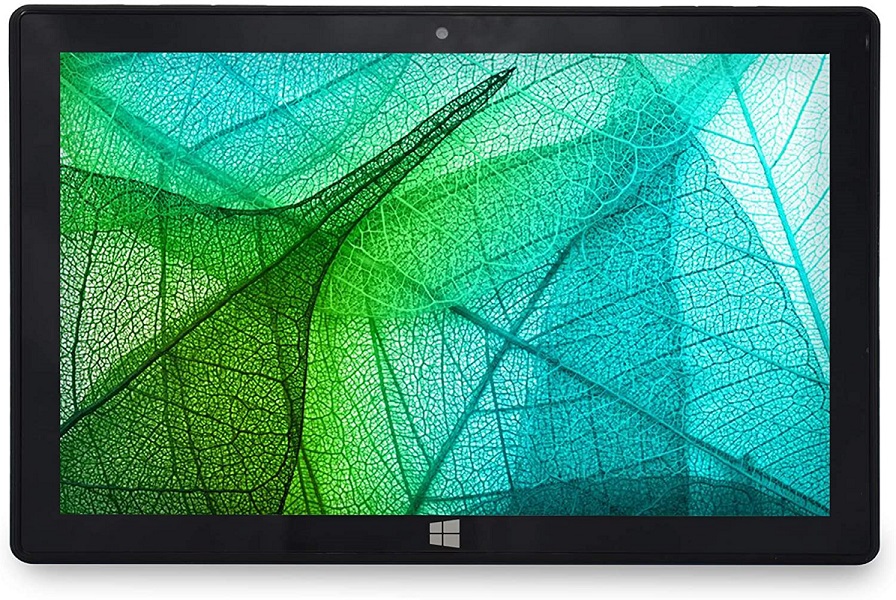

Windows 10 Tablet

10.1" IPS 1920 x 1080 Full HD Touchscreen

6GB RAM

128GB Memory

Windows 10 professional

Intel 2.2Ghz Quad Core processor

Pre-installed and calibrated software

18 Hour Lithim Ion Battery life

Windows 10 tablet




Software and Connectivity

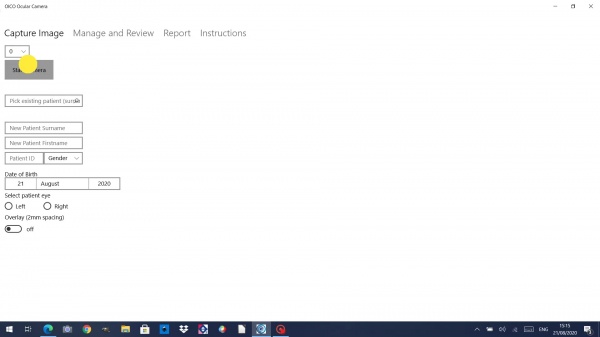

Designed from the outset to be simple to use with as little complication as possible, the Ocu-Cam UltraHD advanced software in pre-installed onto the supplied windows 10 tablet. E
nhanced features such as image filtering, patient data storage and allows for image capture using the supplied foot pedal.

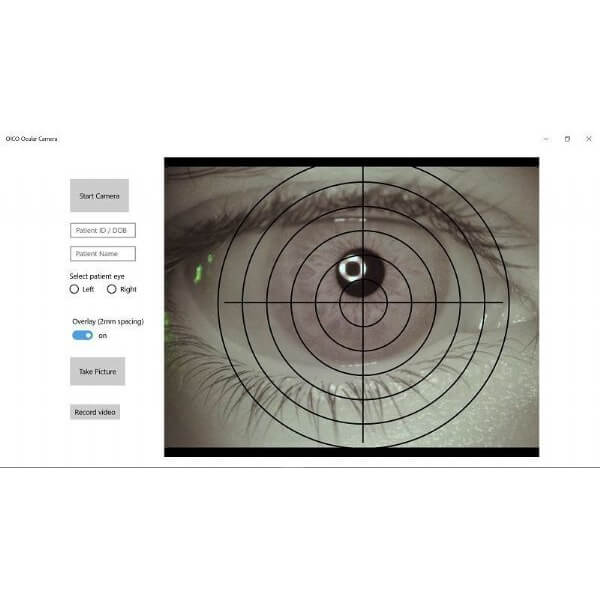

The software also allows for video capture of upto 2 minutes and scaled overlay for accurate corneal measurement.

This software can also be downloaded and used with any compatible Microsoft Windows 10 device.

This software is available FREE of charge for download directly from the Microsoft app store by clicking the link here



The unique UVC plug-and-play connectivity allows the Ocu-Cam Ultra HD camera system to be used on multiple different software platforms with no software installation or downloads needed for operation. This eliminates compatibility issues and allows you to use the camera on the following operating systems:

Microsoft Windows XP, Vista, Windows 7, Windows 10 and Linux with UVC

The plug and play UVC software allows for live image view, photo capture and video capture.



Mounting

Supplied with universal slit lamp mount compatible with focusing rod mount.
Extra long 3m USB cable for connecting to computer.

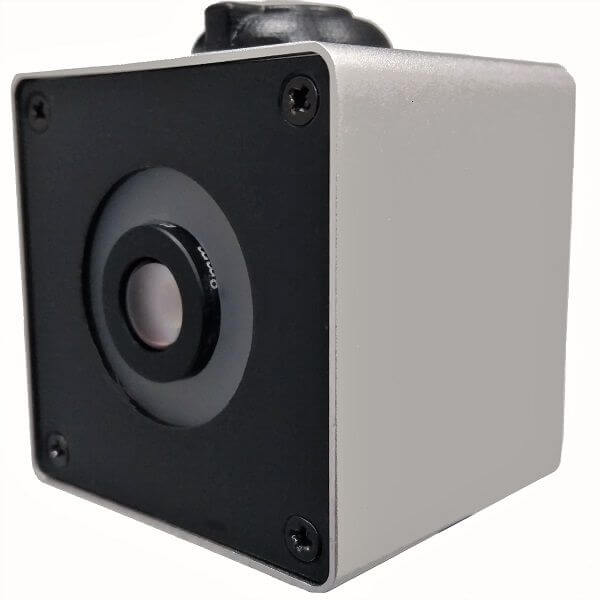

Sensor Resolution:      5MP CMOS Sensor


Photo Size:      2592 x 1944 pixels


Acquisition Mode:      Photo and Video


Working Distance:      5.5 cm from camera


Focus:      Fixed Optical Focus


Illumination:      Infrared LED (Meibography, scotopic pupillometry) White LED (Interferometry, N.I.B.U.T., Tear meniscus, photopic/ mesopic pupillometry). Blue LED (B.U.T. corneal staining)


Data Connectivity:      USB 2.0


Power Supply:      5V via USB


Shutter type:      Electronic rolling shutter / Frame exposure


Frame Rate:      High frame rate 30 fps at full resolution


Dimensions:      42mm x 42mm x 36mm


Software:      Free to download software with patient and data management / Universal UVC


Accessories Included:      Microsoft 10 Tablet, Carry case, Slit lamp mounting rod, USB Foot Switch, 3m USB Cable


Medical Device Class:      Class 1 Medical Device


GTIN:      5053839231010


Brand:      OICO


Product Code:      OC-3
